Overview

TruthTable is a desktop app for managing software engineering teams, optimized for use via a Command Line Interface (CLI) while still having the benefits of a Graphical User Interface (GUI).

This Developer Guide will help you get familiar with the architecture of TruthTable and understand the design choices and implementations of key features in TruthTable, in case you are interested in contributing to this project.

Table of Contents

Acknowledgements

  • Our application is based on the AddressBook-Level3 project created by the SE-EDU initiative.
  • Our application makes use of the picocli library for parsing commands.
  • Our application makes use of JavaFX as the UI framework.
  • Our application makes use of Jackson as the JSON parser.
  • Our application makes use of JUnit5 as the testing framework.

Setting Up / Getting Started

If this is your first time contributing to our application, please take a look at the guide Setting up and getting started.

Design

:bulb: Tip: The .puml files used to create diagrams in this document can be found in the diagrams folder. Refer to the PlantUML Tutorial at se-edu/guides to learn how to create and edit diagrams.

Architecture

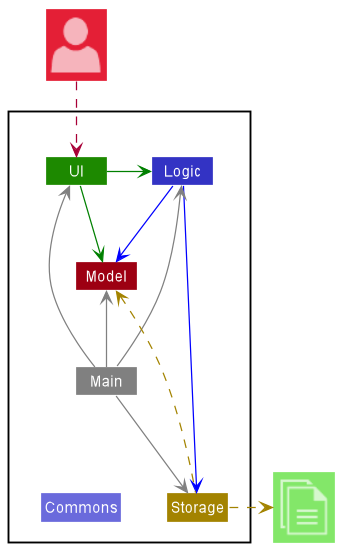

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main has two classes called Main and MainApp. It is responsible for,

  • At app launch: Initializes the components in the correct sequence, and connects them up with each other.
  • At shut down: Shuts down the components and invokes cleanup methods where necessary.

Commons represents a collection of classes used by multiple other components.

The rest of the App consists of four components.

  • UI: The UI of the App.
  • Logic: The command executor.
  • Model: Holds the data of the App in memory.
  • Storage: Reads data from, and writes data to, the hard disk.

How the architecture components interact with each other

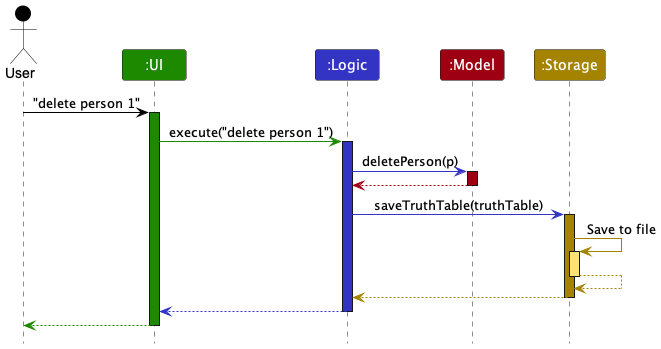

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete person 1.

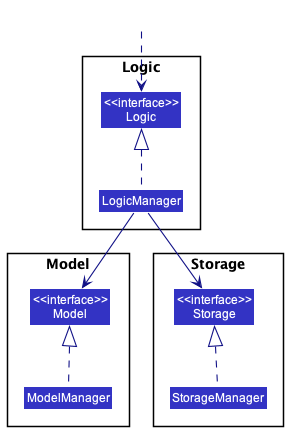

Each of the four main components (also shown in the diagram above),

  • defines its API in an interface with the same name as the component.
  • implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point).

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside components being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

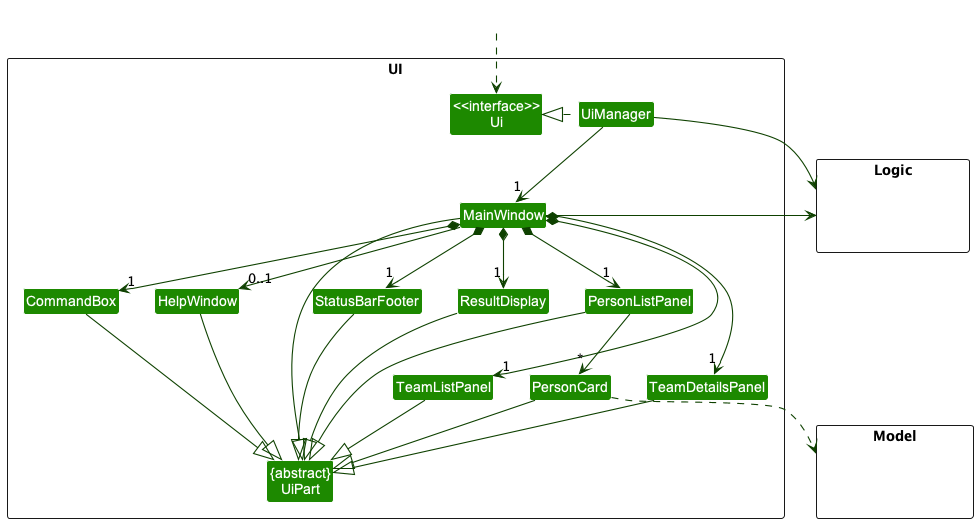

The classes are related to each other as such:

Structure of the UI Component

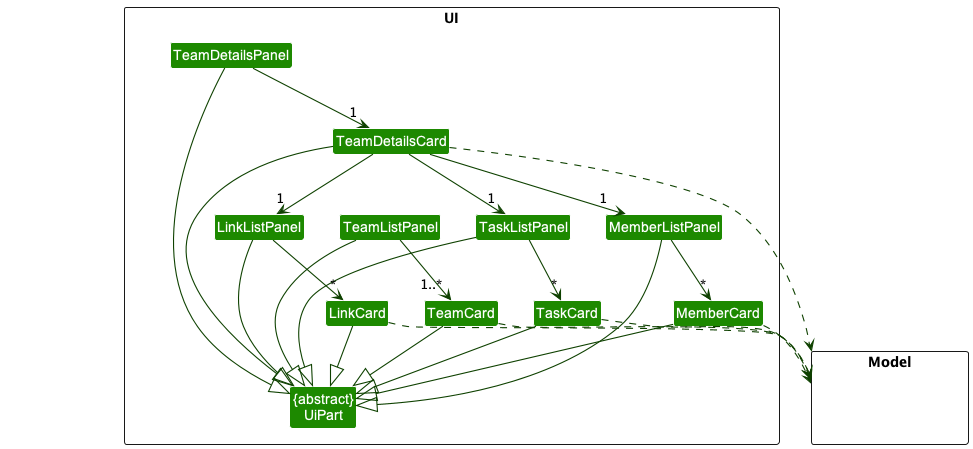

For the sake of readability and understanding, the classes related to TeamListPanel and TaskDetailsPanel have been omitted in the above diagram. They have been extracted out in a separate diagram as follows:

Structure of the Teams Component of UI

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel , StatusBarFooter, TeamListPanel, TeamDetailsPanel etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

  • executes user commands using the Logic component.
  • listens for changes to Model data so that the UI can be updated with the modified data.
  • keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
  • depends on some classes in the Model component. For example, the PersonListPanel displays the Person object residing in the Model.

Logic component

API : Logic.java

Here’s a (partial) class diagram of the Logic component:

How the Logic component works:

  1. When Logic is called upon to execute a command, it uses the TruthTableParser class to parse the user command.
  2. This results in a Command object (more precisely, an object of one of its subclasses e.g., AddPersonCommand) which is executed by the LogicManager.
  3. The command can communicate with the Model when it is executed (e.g. to add a person).
  4. The result of the command execution is encapsulated as a CommandResult object which is returned from Logic.

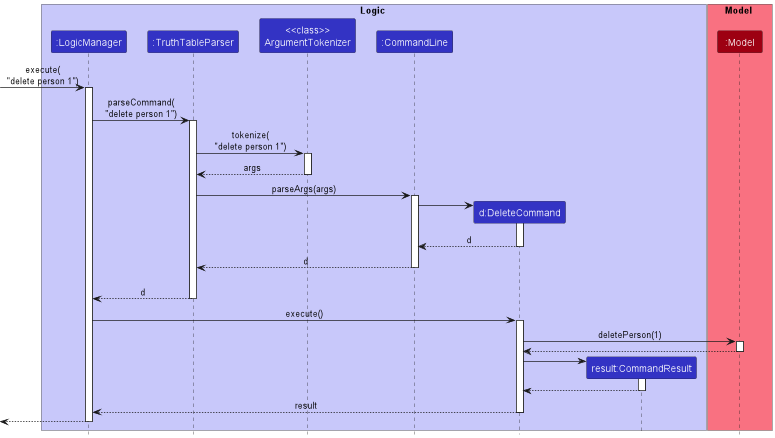

The Sequence Diagram below illustrates the interactions within the Logic component for the execute("delete person 1") API call.

Interactions Inside the Logic Component for the `delete 1` Command

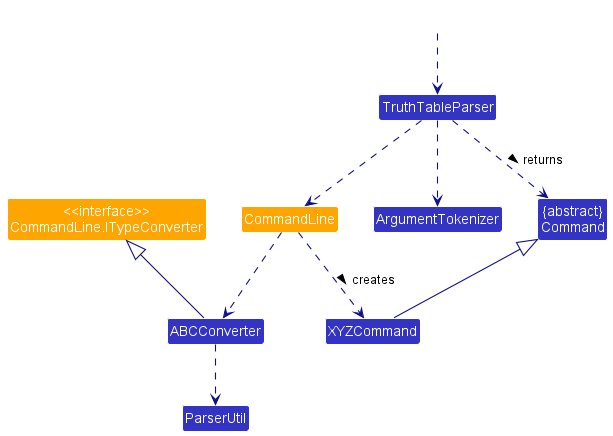

Here are the other classes in Logic (some of which omitted from the class diagram above) that are used for parsing a user command:

:information_source: Note: The classes in Orange above are provided by picocli. For more info, check out the picocli documentation page.

How the parsing works:

  • When called upon to parse a user command, the TruthTableParser class calls the static method tokenize from ArgumentTokenizer, which will split a string into a string array of tokens args (inspired by the Shell Command Language, a string is split into space-separated strings, except for quoted strings which will remain as a single token, e.g. token1 "token 2" token-3 will be read as 3 separate tokens token1, token 2, token-3).
  • The TruthTableParser class passes args to the CommandLine class provided by picocli, which will parse the
    command XYZComnand (XYZ is a placeholder for the specific command e.g. DeletePersonCommand), converting any arguments from strings to specific types using ABCConverter (ABC is a placeholder for the type argument e.g. IndexConverter since DeletePersonCommand takes in an integer as an Index).
  • All ABCConverter classes (e.g., IndexConverter, NameConverter, EmailConverter …) extend the CommandLine.IConverter interface to be utilized by picocli.

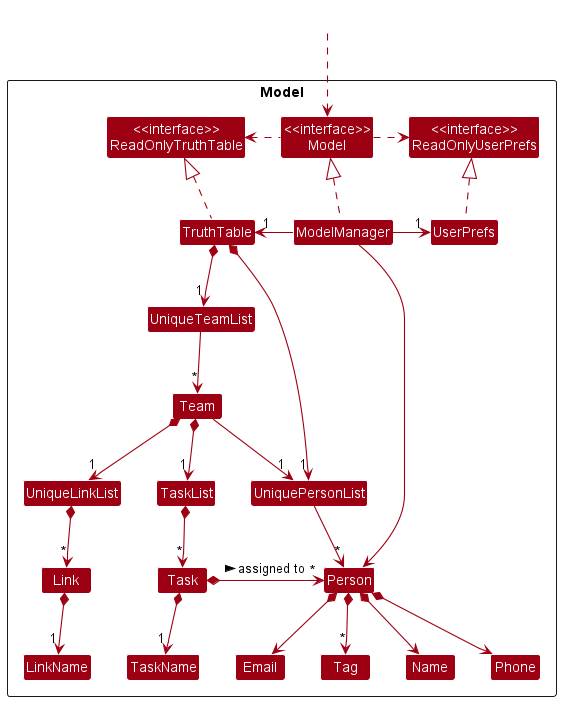

Model component

API : Model.java

The Model component,

  • stores the TruthTable data i.e., all Person objects (which are contained in a UniquePersonList object) and Team objects (which are contained in a UniqueTeamList object) each of which containing Task, Link and Person objects (see the section below regarding Team).
  • stores the currently ‘selected’ Person or Team objects (e.g., results of a search query) as a separate filtered list which is exposed to other classes as an unmodifiable ObservableList<T> where T is either Person or Team that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
  • stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
  • does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Each Team object,

  • stores a list of Task objects (in a TaskList object), list of team members (Person objects in a UniquePersonList object) and Link objects (in a UniqueLinkList).
  • exposes a list of Person or Task objects as a DisplayList<T>, which itself contains a FilteredList<T> (where T refers to either Person or Task). This FilteredList will store a ‘filtered’ view on the data (e.g., results of a search query) sorted in a particular manner. It can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data (or its order) in the list changes.

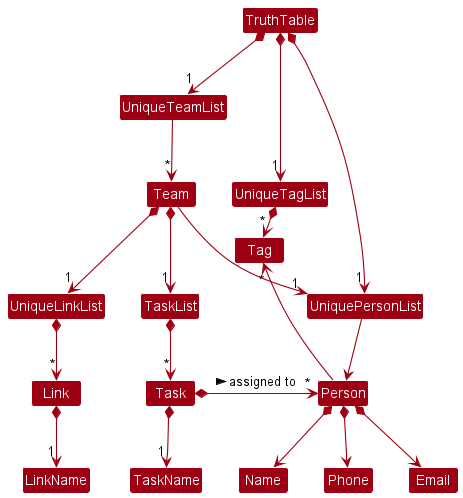

:information_source: Note: An alternative (arguably, a more OOP) model is given below. It has a Tag list in the TruthTable, which Person references. This allows TruthTable to only require one Tag object per unique tag, instead of each Person needing their own Tag objects.

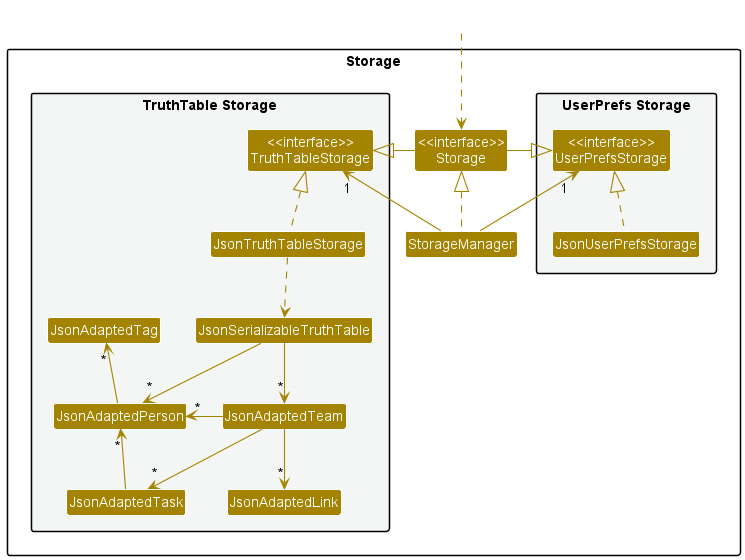

Storage component

API : Storage.java

The Storage component,

  • can save both TruthTable data and user preference data in json format, and read them back into corresponding objects.
  • inherits from both TruthTableStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
  • depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)
:information_source: Note: Currently, as Team, Task and the overall TruthTable objects all have references to Person, for ease of a copy of the entire Person object is stored within each of its JsonAdaptedXYZ parent objects in the json file (where XYZ refers to Team, Task or TruthTable. An alternative (arguably better) implementation would be to only store the name of each Person object and repopulate its fields from the TruthTable list of Person objects, which would reduce repetition.

Common classes

Classes used by multiple components are in the seedu.addressbook.commons package.

Implementation

This section describes some noteworthy details on how certain features are implemented.

Add Team Feature

Implementation

The add team feature allows users to add a specific team to their list of teams.

The TruthTable object is designed to have a list of teams called UniqueTeamList.

The following is an example of how a team is added:

Precondition: Team name is valid (it cannot be empty or begin with a space)

  1. User keys in the add team command with the name of the team to be added (e.g. add team CS2103)
  2. A team is created added to the team list.

If the team name provided is invalid, an appropriate exception will be thrown and the respective error message will be shown to the user.

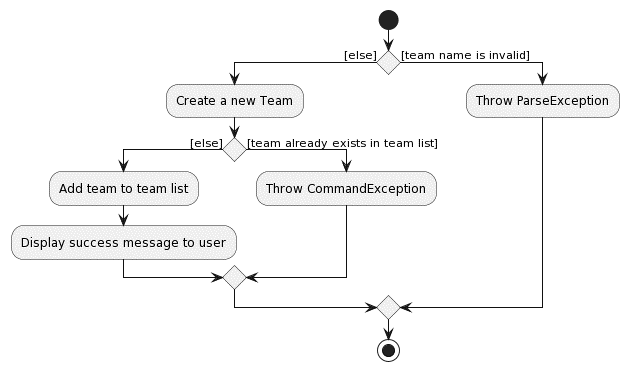

The following activity diagram summarizes the action taken when the AddTeamCommand is executed. AddTeamActivityDiagram

Add Task Feature

Implementation

The add task feature allows users to add a specific task to their team’s task list. The following is an example of how a task is added:

Precondition: Task name is valid (it cannot be empty or have quotation marks).

  1. User keys in the add task command with the name of the task to be added (e.g. add task Complete Resume)
  2. A task is created and added to the current team’s task list.

If the task name provided is invalid, an appropriate exception will be thrown and the respective error message will be shown to the user.

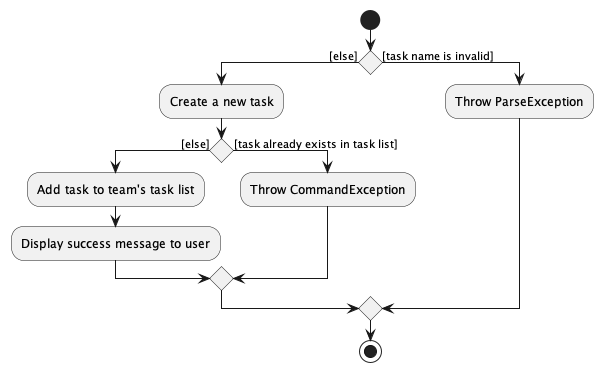

The following activity diagram summarizes the action taken when AddTaskCommand is executed: AddTaskActivityDiagram

Activity diagram of adding a task

Design considerations:

  • Alternative 1: Store a global list of tasks and each task keeps track of which team it was created for through an attribute.
    • Pros: A single list of tasks makes it easier to list all the tasks associated with all teams.
    • Cons: Does not accurately model how teams actually work in terms of task distribution.
  • Alternative 2: Each team stores a list of tasks that are associated with it.
    • Pros: Better modularization since a team contains all the information related to itself, including the tasks associated with it.
    • Cons: It is slightly more complicated to find the list of all tasks associated with a person if the person belongs to multiple teams since there multiple task lists.

We decided to use alternative 2 because it scales better as the number of teams increase.

Mark Task as Done Feature

Implementation

The mark feature allows users to mark a specific task as done.

The following is an example usage scenario of how a task is marked as done:

Precondition: Task index provided is valid.

  1. User keys in mark command with the specific index of the task. (e.g. mark 1)
  2. The first task in the task list is marked as done.

If any of the following occurs:

  1. Index given is negative
  2. Index given is out of range (i.e. There are fewer tasks than the specified index)
  3. Task has already been marked as done

Then, an appropriate exception will be thrown and the respective error message will be shown to the user.

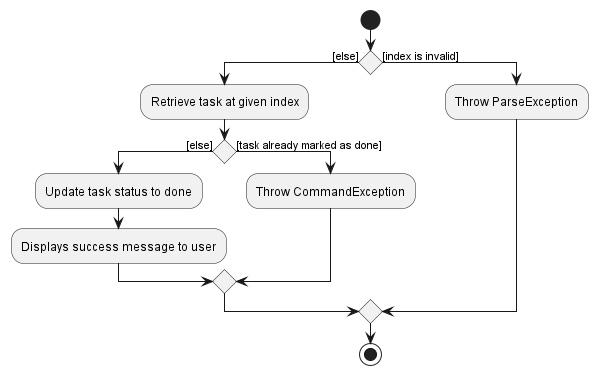

The following activity diagram summarizes the action taken when MarkCommand is executed:

MarkActivityDiagram

Activity diagram of marking task as done

Add Member to Team Feature

Implementation

The add member to team feature allows users to add a user to the current team using the person’s name.

The following is an example usage scenario of how a member is added to a team:

Precondition: Index provided is valid and the current working team is set to the team that the member should be added to.

  1. User keys in add member command along with the person’s index.
  2. The person at the specified index in the list is added to the team.

If any of the following occurs:

  1. The index provided is less than 1
  2. The index provided is greater than the number of persons in TruthTable
  3. Person at the specified index is already in the team

Then, an appropriate exception will be thrown and the respective error message will be shown to the user.

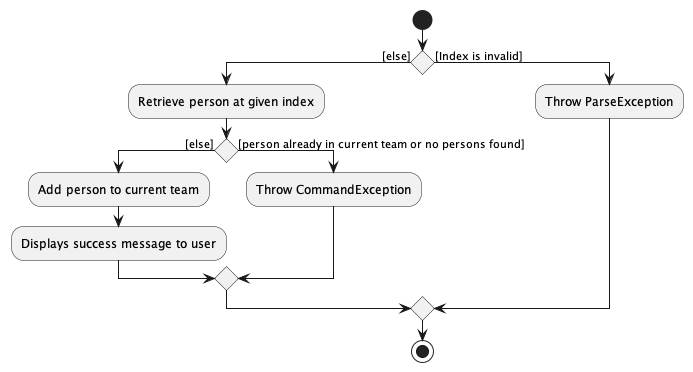

The following activity diagram summarizes the action taken when the AddMemberCommand is executed:

AddMemberActivityDiagram

Activity diagram of adding member to team

In the Logic component, once LogicManager#execute() is called, TruthTableParser and AddMemberCommandParser parses the index of the person in the user input, and generates a AddMemberCommand object. LogicManager then executes the AddMemberCommand object, which adds the person to the current team in the Model component. A CommandResult is generated with a message indicating the person being added to the team.

List Members Feature

Implementation

The list members feature allows users to view the members in their current team.

The list members command updates the PersonListPanel and shows the members in the current team.

Currently, PersonListPanel displays all persons that satisfy some Predicate, which is stored in the filteredPersons in ModelManager.

Whenever list members command is called, the Predicate for filteredPersons is then updated and the corresponding members of the team is shown.

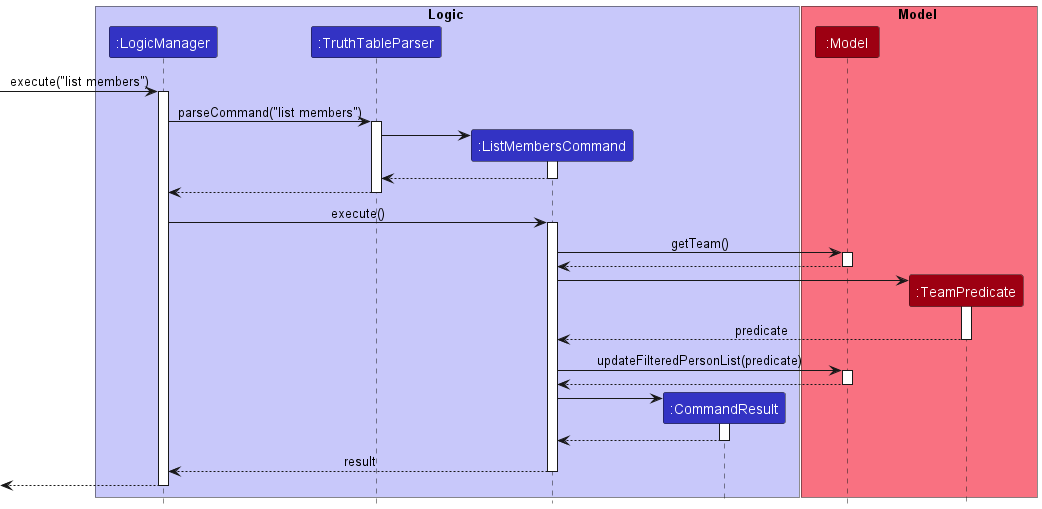

The following sequence diagram illustrates what happens within the Logic component when the list members command is executed: ListMembersSequenceDiagram

Randomly Assign Task Feature

Implementation

The randomly assign task feature allows users to assign a Task (within a particular Team) to a random team member ( represented as a Person object) within the team, who are not already assigned to that Task.

This functionality is exposed to the user through the assign random command, and the logic is executed in AssignTaskRandomlyCommand#execute().

Given below is an example usage scenario and the state of the Team object at each step.

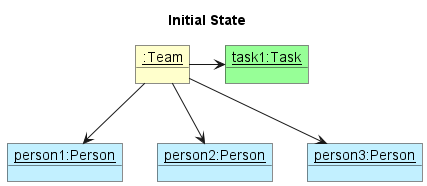

Step 1. The user launches the application and adds multiple users into the current team, as well as at least one task. The Team will contain multiple Person objects (representing team members).

RandomlyAssignTaskState0

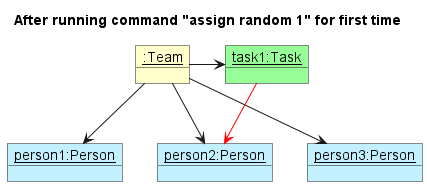

Step 2. The user executes the command assign random 1 to assign the first (and only) Task randomly to any team member. As none of the team members have been added, all of them are candidates for random assignment. One of them will be randomly assigned the task (see red arrow).

RandomlyAssignTaskState1

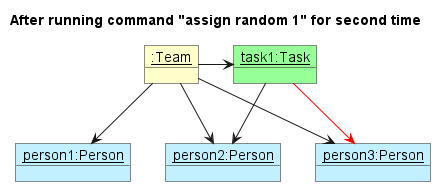

Step 3. The user may want to assign a second team member to the task, hence executing assign random 1 again. The team member who has previously been allocated will not be considered. Similar to above, one more team member will be randomly allocated the task (see red arrow).

RandomlyAssignTaskState2

:information_source: Note: If there are no team members left to allocate (e.g. all team members have already been assigned to this task), an error will be thrown.

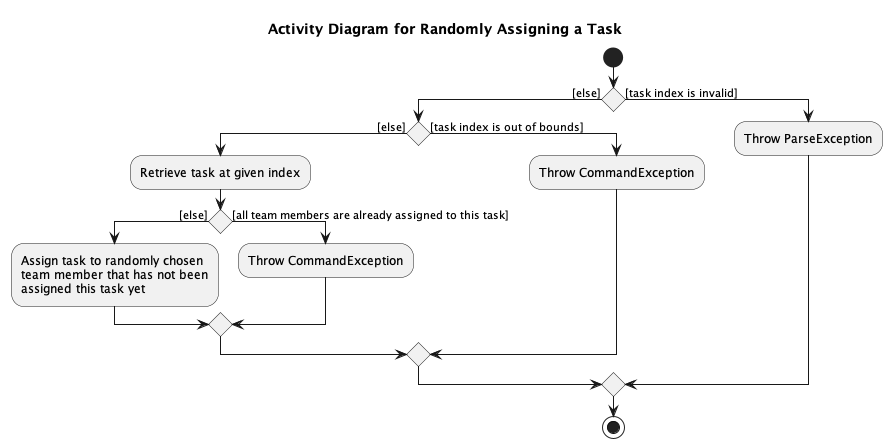

The following activity diagram summarizes the flow of AssignTaskRandomlyCommand#execute().

RandomlyAssignTaskActivityDiagram

Activity diagram of randomly assigning a task

Implementation

The add link feature allows users to add links to their current team.

The add link command updates the LinkListPanel and adds the link to the list.

The following is an example usage scenario of how a member is added to a team:

Precondition: Link name and URL provided is valid and the current working team is set to the team that the link should be added to.

  1. User keys in add link command along with the -n flag and the link name, and the -l flag and the link URL.
  2. The link is added to the link list of the current working team.

If any of the following occurs:

  1. The link name is invalid
  2. The URL is badly formatted
  3. Either the link or the URL is missing

Then, an appropriate exception will be thrown and the respective error message will be shown to the user.

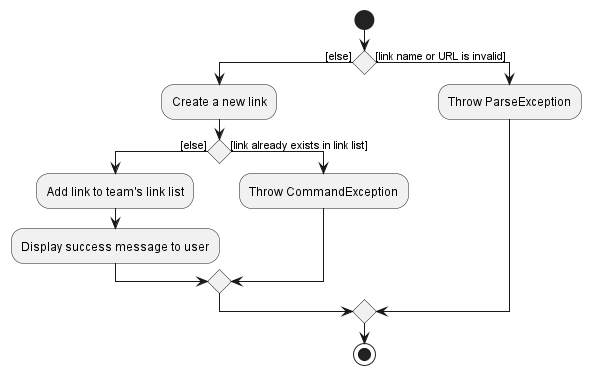

The following activity diagram summarizes the action taken when the AddMemberCommand is executed:

AddLinkActivityDiagram

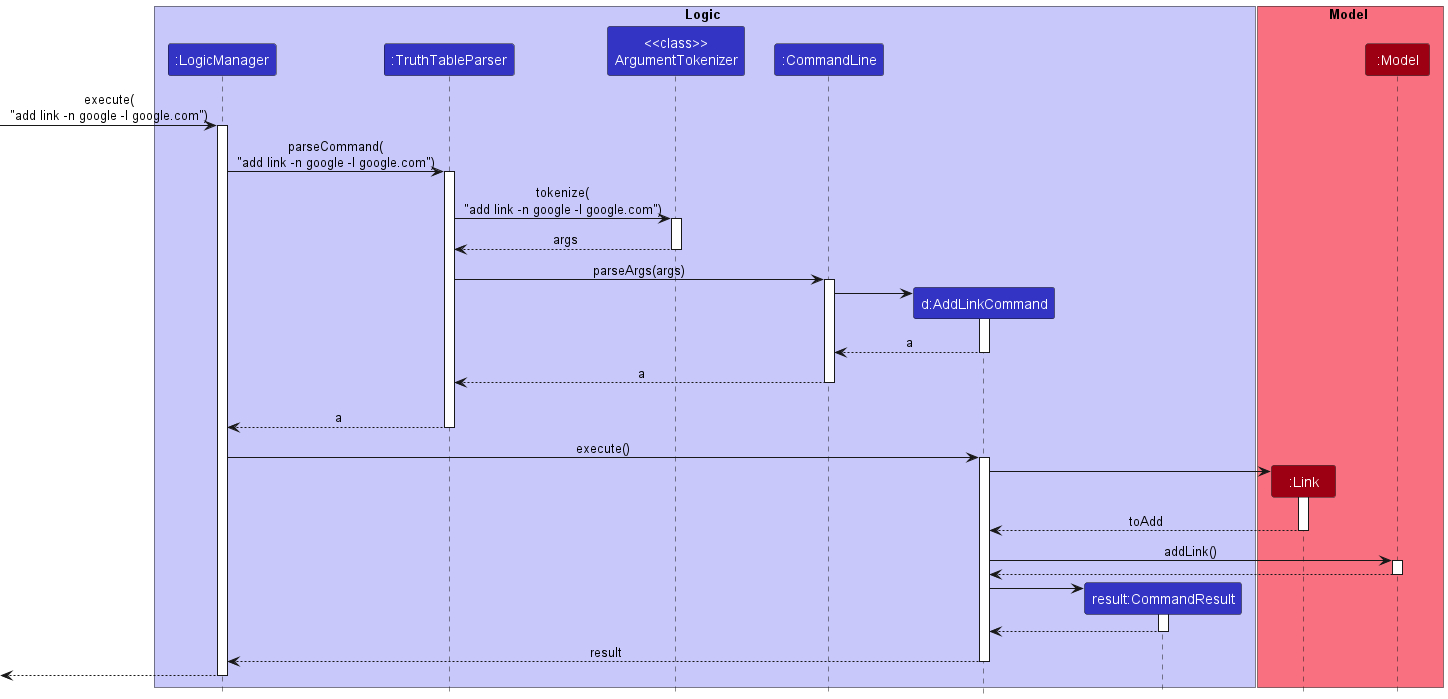

The following sequence diagram illustrates what happens within the Logic component when the add link command is executed: AddLinkSequenceDiagram ——————————————————————————————————————–

Documentation, Logging, Testing, Configuration, DevOps

Appendix: Requirements

Product scope

Target user profile:

  • Tech-savvy university student leading teams in software engineering modules to build software projects
  • Having trouble keeping track of the team’s progress and delegating tasks effectively
  • Student who prefers CLI to GUI for productivity’s sake
  • Desperate for a single source of truth on who is doing what and by when

Value proposition:

  • Users can collate different project-related information (e.g. GitHub project PRs, issues, links to Zoom meetings, and Google Docs)
  • Users can visualize teams’ progress easily
  • Users can delegate tasks to their teammates conveniently
  • CLI interface to manage project tasks much more quickly than GUI based products

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority As a … I want to … So that I can…
* * * New User See usage instructions Refer to instructions when I forget how to use the App
* * * Team Leader View completed tasks Track the status of the project
* * * Team Leader Add new tasks Track things my team needs to do
* * * Team Leader Add team members with their contact information Keep track of my team members and contact them with their preferred mode of communication
* * * Team Leader View tasks based on contact’s name/email Keep track of each person’s tasks
* * * Team Leader Assign deadlines to tasks Track whether we are meeting deadlines for all tasks or not
* * * Team Leader Create multiple stages of completion for a task (e.g. in progress, in code review, done) See the progress of each task at a glance
* * * Team Leader Delete tasks Remove tasks that are no longer required to be completed or have been added on mistake
* * * Team Leader Delete members Remove information of members who are no longer working on my project
* * Team Leader Modify existing tasks Update project requirements and track things to do
* * Team Leader Assign tasks to team members Distribute workload evenly and keep everyone accountable
* * Team Leader Edit the contact information of my team members Correct it if I accidentally added the wrong number/email
* * Team Leader Give priority to tasks Better plan which tasks are to be assigned to whom and when
* * Engineering Team Lead Store links that lead me to an issue on the repo Easily view the diff, progress, etc.
* * Team Leader View links to future Zoom meetings Avoid opening Zoom separately and can directly join the meeting from the application
* * Team Leader Add subtasks Break down tasks into manageable parts
* * Team Leader View a summary of how many tasks each member has been assigned Assign tasks to the members more equally, based on how occupied they might be
* * Team Leader Add recurring tasks such as weekly meetings Assign a recurring tasks once instead of having to schedule it every occurrence
* Team Leader View past meeting minutes Refer to what has been discussed before
* Team Leader View past meetings Remember which date we completed each meeting
* Team Leader View upcoming meetings Plan for upcoming meetings
* Team Leader Modify upcoming meetings Reschedule future meetings when the need arises
* Team Leader Copy team member’s email Easily send an email to remind him/her to do their task
* Team Leader Have 2 kinds of deadlines - soft and hard Let my team members finish the task by the soft deadline and I can review/merge by the hard deadline
* Team Leader Receive reminders when a deadline is due Ensure tasks are completed on time
* Team Leader Randomly assign a task to any team member Assign tasks easily if nobody has any preference

Use cases

(For all use cases below, the System is the TruthTable and the Actor is the user, unless specified otherwise)

Use case: UC01 - Add a member to a team

Preconditions: The current working team is set to the team that the member should be added to.

MSS

  1. User requests to add member and provides member name

  2. TruthTable adds the member

    Use case ends.

Extensions

  • 1a. There is no name provided.

    • 1a1. TruthTable shows an error message.

      Use case resumes at step 1.

Use case: UC02 - Delete a member from a team

Preconditions: The current working team is set to the team that the member should be deleted from.

MSS

  1. User requests to list members
  2. TruthTable shows a list of members
  3. User requests to delete a specific member in the list

  4. TruthTable deletes the member

    Use case ends.

Extensions

  • 2a. The list is empty.

    Use case ends.

  • 3a. The given index is invalid.

    • 3a1. TruthTable shows an error message.

      Use case resumes at step 2.

Use case: UC03 - List all members of a team

Preconditions: The current working team is set to the team that the members should be listed from.

MSS

  1. User requests to list members

  2. TruthTable shows a list of members belonging to the team

    Use case ends.

Extensions

  • 2a. The list is empty.

    Use case ends.

Use case: UC04 - Add a task to a team

Preconditions: The current working team is set to the team that the task should be added to.

MSS

  1. User requests to add task and provides task name, task deadline and assignee(s)

  2. TruthTable adds the task to the list of tasks

    Use case ends.

Extensions

  • 1a. There is no task name provided.

    • 1a1. TruthTable shows an error message.

      Use case resumes at step 1.

  • 1b. The task deadline is badly formatted.

    • 1b1. TruthTable shows an error message.

      Use case resumes at step 1.

  • 1c. The assignee index is out of bounds.

    • 1c1. TruthTable shows an error message.

      Use case resumes at step 1.

Use case: UC05 - Delete a task from a team

Preconditions: The current working team is set to the team that the task should be deleted from.

MSS

  1. User requests to list tasks
  2. TruthTable shows a list of tasks
  3. User requests to delete a specific task in the list

  4. TruthTable deletes the task

    Use case ends.

Extensions

  • 2a. The list is empty.

    Use case ends.

  • 3a. The given index is invalid.

    • 3a1. TruthTable shows an error message.

      Use case resumes at step 2.

Use case: UC06 - List all tasks of a team

Preconditions: The current working team is set to the team whose list of task is to be displayed.

MSS

  1. User requests to list tasks

  2. TruthTable shows a list of tasks belonging to the team

    Use case ends.

Extensions

  • 2a. The list is empty.

    Use case ends.

Use case: UC07 - Add deadline to existing task

Preconditions: The current working team is set to the team that has the existing task.

MSS

  1. User requests to list tasks
  2. TruthTable shows a list of tasks
  3. User requests to add deadline to specific task in the list

  4. TruthTable adds deadline to task

    Use case ends.

Extensions

  • 2a. The list is empty.

    Use case ends.

  • 3a. The given index is invalid.

    • 3a1. TruthTable shows an error message.

      Use case resumes at step 2.

  • 3b. The given deadline is invalid.

    • 3b1. TruthTable shows an error message.

      Use case resumes at step 2.

Use case: UC08 - Create new team

MSS

  1. User requests create new team and provides new team name

  2. TruthTable creates a new team and sets current working team to new team

    Use case ends.

Extensions

  • 1a. The given team name is used for an existing team already.

    • 1a1. TruthTable shows an error message.

      Use case resumes at step 1.

  • 1b. There is no team name given.

    • 1b1. TruthTable shows an error message.

      Use case resumes at step 1.

Use case: UC09 - Change current working team

MSS

  1. User requests to change current working team

  2. TruthTable sets current working team to specified team

    Use case ends.

Extensions

  • 1a. There is no team name given.

    • 1a1. TruthTable shows an error message.

      Use case resumes at step 1.

  • 1b. Team provided does not exist.

    • 1b1. TruthTable shows an error message

      Use case resumes at step 1.

  • 1c. Team provided already set as current team.

    • 1c1. TruthTable shows an error message.

      Use case resumes at step 1.

Use case: UC10 - Add a link to a team

Preconditions: The current working team is set to the team that the link should be added to.

MSS

  1. User requests to add link and provides link name and link URL

  2. TruthTable adds the link to the list of links

    Use case ends.

Extensions

  • 1a. There is no link name provided.

    • 1a1. TruthTable shows an error message.

      Use case resumes at step 1.

  • 1b. The link URL is badly formatted.

    • 1b1. TruthTable shows an error message.

      Use case resumes at step 1.

  • 1c. There is no URL provided.

    • 1c1. TruthTable shows an error message.

      Use case resumes at step 1.

Non-Functional Requirements

  1. Should work on any mainstream OS as long as it has Java 11 or above installed.
  2. Should be able to hold up to 1000 persons without a noticeable sluggishness in performance for typical usage.
  3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
  4. Should not require internet connection.
  5. Any changes to the data should be saved permanently and automatically.
  6. Must be able to be packaged into an executable JAR file that is less than 100MB.
  7. The data should be stored locally in a readable and human-editable format.
  8. No database management system should be used.
  9. Should be able to respond to user requests in less than 1 second when there are less than 1000 persons’ data stored.

Glossary

  • Issue: Generally refers to an issue created on GitHub that is used to track the progress of a software development project.
  • Mainstream OS: Windows, Linux, Unix, OS-X
  • Member: A person in the team, working on a project.
  • Repo: A short-form for “repository” meant to store code (usually on a platform such as GitHub or GitLab)
  • Task: Anything that needs to be completed for the project to move forward.
  • Team Leader: The person in-charge of a project, typically a software engineering project.

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

:information_source: Note: These instructions only provide a starting point for testers to work on; testers are expected to do more exploratory testing.

Launch and shutdown

  1. Initial launch

    1. Download the latest truthtable.jar file from the latest release and copy into an empty folder

    2. Double-click the jar file
      Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

  2. Saving window preferences

    1. Resize the window to an optimum size. Move the window to a different location. Close the window.

    2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

Testing Commands to Manage Persons

Adding a person

  1. Adding a person to TruthTable

    1. Test case: add person -n John Doe -p 98765432 -e johnd@example.com -t developer designer
      Expected: If there is already a person called John Doe in TruthTable, then an error message will appear in the output box. Otherwise, a new person will be added to the list in the right output box, with name John Doe, phone number 98765432, email johnd@example.com, and tags developer and designer.

    2. Test case: add person -n Jane Doe -p 92345678 -e janed@example.com
      Expected: If there is already a person called Jane Doe in TruthTable, then an error message will appear in the output box. Otherwise, a new person will be added to the list in the right output box, with name Jane Doe, phone number 92345678, email janed@example.com, and no tags.

    3. Test case: add person -n John Doe -p 98765432
      Expected: No person is added. Error details shown in the message displayed in the output box.

    4. Other incorrect add person commands to try: add person -p 98765432 -e johnd@example.com -t developer, add person -n John Doe -p 98765432, ... (where one or more attributes are missing in the command)
      Expected: An error message of Invalid command format will be displayed in the output box.

Editing a person

  1. Editing a person while all persons are being shown

    1. Prerequisites: List all persons using the list persons command. Person list is not empty.

    2. Test case: edit person 1 -p 92345678 -e johndoe@example.com Expected: Edits the phone number and email address of the first person to be 92345678 and johndoe@example.com respectively.

    3. Test case: edit person 0 -p 92345678 -e johndoe@example.com Expected: No person is edited. Error details shown in the output box.

    4. Other incorrect edit commands to try: edit person, edit person X -n John, ... (where X is a positive integer larger than the displayed persons list size)
      Expected: Similar to previous.

Deleting a person

  1. Deleting a person while all persons are being shown

    1. Prerequisites: List all persons using the list persons command. Person list is not empty.

    2. Test case: delete person 1
      Expected: First person is deleted from the list. Details of the deleted contact shown in the output box.

    3. Test case: delete person 0
      Expected: No person is deleted. Error details shown in the output box.

    4. Other incorrect delete commands to try: delete person, delete person X, ... (where X is a positive integer larger than the persons list size)
      Expected: Similar to previous.

Finding a person

  1. Finding all persons whose names contain any of the given keywords

    1. Prerequisites: Person list is not empty.

    2. Test case: find person John
      Suppose that there is a person named John Doe.
      Expected: Message indicating number of persons found is displayed. Person list on the right updates to only show the persons found.

    3. Test case: find person Jane
      Suppose that there is no person with a name containing Jane.
      Expected: Message indicating that no persons were found is displayed.

    4. Test case: find person
      Expected: An error message of Invalid command format will be displayed in the output box.

Listing all persons

  1. Listing all persons in TruthTable

    1. Test case: list persons
      Expected: All persons stored in TruthTable are displayed.

Testing Commands to Manage Members

Adding a member

  1. Adding a member to the currently selected team

    1. Prerequisites: List all persons using the list persons command. Person list is not empty.

    2. Test case: add member 1
      Expected: If the first person on the person list is already a member in the team, then an error message will be displayed on the output box. Otherwise, the first person is added to the team from the list. Details of the added member shown in the output box.

    3. Test case: add member 0
      Expected: No member is added. Error details shown in the output box.

    4. Other incorrect delete commands to try: add member, add member X, ... (where X is a positive integer larger than the displayed persons list size)
      Expected: Similar to previous.

Deleting a member

  1. Deleting a member to the currently selected team

    1. Prerequisites: List all members using the list members command. Member list is not empty.

    2. Test case: delete member 1
      Expected: First member is deleted from the list. Details of the deleted member shown in the output box.

    3. Test case: delete member 0
      Expected: No member is deleted. Error details shown in the output box.

    4. Other incorrect delete commands to try: delete member, delete member X, ... (where X is a positive integer larger than the displayed members list size)
      Expected: Similar to previous.

Finding a member

  1. Finding all members whose names or emails contain any of the given keywords

    1. Prerequisites: Member list is not empty.

    2. Test case: find member John
      Suppose that there is a member on the team named John Doe.
      Expected: Message indicating number of persons found is displayed. Member list updates to only show the persons found.

    3. Test case: find member Jane
      Suppose that there is no member with a name containing Jane.
      Expected: Message indicating that no persons were found is displayed.

    4. Test case: find member
      Expected: An error message of Invalid command format will be displayed in the output box.

Listing all members

  1. Listing all members in the currently selected team

    1. Test case: list members
      Expected: All members in the currently selected team in TruthTable are displayed.

Sorting members

  1. Sorting members in the currently selected team

    1. Test case: sort members asc
      Expected: Team members are sorted in ascending alphabetical order in task list, based on their names.

    2. Test case: sort members dsc
      Expected: Team members are sorted in descending alphabetical order in task list, based on their names.

    3. Test case: sort members res
      Expected: Order of team members in member list is reset to order of insertion.

    4. Test case: sort members
      Expected: An error message of Invalid command format will be displayed in the output box.

Testing Commands to Manage Teams

Adding a team

  1. Creating a team on TruthTable

    1. Test case: add team CS2102 -d "Database Systems"
      Expected: If there is already a team called CS2102 in TruthTable, then an error message will appear in the output box. Otherwise, a new team will be added to the team list tabs, with name CS2102, and team description Database Systems.

    2. Test case: add team CS2103T
      Expected: If there is already a team called CS2103T in TruthTable, then an error message will appear in the output box. Otherwise, a new team will be added to the team list tabs, with name CS2103T and a default team description.

    3. Test case: add team -d "Software Engineering"
      Expected: No team is created. Error details shown in the message displayed in the output box.

    4. Test case: add team
      Expected: An error message of Invalid command format will be displayed in the output box.

Editing a team

  1. Editing the current team on TruthTable

    1. Prerequisites: The current working team is set to the team to be edited

    2. Test case: edit team -n CS2102 -d "Database Systems
      Expected: Edits the team name and team description of the current team to be CS2102 and Database Systems respectively.

Deleting a team

  1. Deleting an existing team from TruthTable

    1. Prerequisites: The target team is not the only existing team

    2. Test case: delete team CS2103T
      Expected: If there is no team named CS2103T, an error message is displayed in the output box and no team will be deleted. Otherwise, the team with name CS2103T will be deleted from TruthTable

Setting a team

  1. Sets the current working team to the target team

    1. Test case: set team CS2103T
      Expected: If there is no team named CS2103T, or the current team is named CS2103T, an error message is displayed in the output box and the current working team will not be changed. Otherwise, the team with name CS2103T will be set as the current working team.

Testing Commands to Manage Tasks

Adding a task

  1. Adding a task to TruthTable

    1. Test case: add task "Create PR"
      Expected: If there is already a task called Create PR in TruthTable, then an error message will appear in the output box. Otherwise, a new task will be added to the task list, with name Create PR.

    2. Test case: add task "Review PR" -a 1 3 -d 2022-12-02 23:59
      Expected: If there is already a task called Review PR in TruthTable, or if there are fewer than three members, then an error message will appear in the output box. Otherwise, a new task will be added to the task list, with name Review PR, assigned to the first and third members of your team’s members list, and a deadline of 2nd Dec 2022 23:59.

    3. Test case: add task -a 1 3 -d 2022-12-02 23:59
      Expected: No task is added as no task name is provided. Error details shown in the message displayed in the output box.

Editing a task

  1. Editing a task while all tasks are being shown

    1. Prerequisites: List all tasks in the current team using the list tasks command. Task list is not empty.

    2. Test case: edit task 1 -n "Merge PR" -a 1 -d 2022-12-02 23:59 Expected: The first task in the current team’s task list is edited, setting the name as Merge PR, assignees as the first member in the team list, and deadline as 2nd Dec 2022 23:59.

    3. Test case: edit task 1 -a Expected: The first task in the current team’s task list is edited, removing all assignees from the task. The name and deadline are not modified in this example.

    4. Other incorrect delete commands to try: edit task, edit task X -n Meeting, ... (where X is a positive integer larger than the displayed tasks list size)
      Expected: Similar to previous.

Deleting a task

  1. Deleting a task while all tasks are being shown

    1. Prerequisites: List all tasks using the list tasks command. Task list is not empty.

    2. Test case: delete task 1
      Expected: First task is deleted from the list. Details of the deleted task shown in the output box.

    3. Test case: delete task 0
      Expected: No task is deleted. Error details shown in the output box.

    4. Other incorrect delete commands to try: delete task, delete task X, ... (where X is a positive integer larger than the displayed tasks list size)
      Expected: Similar to previous.

Finding a task

  1. Finding all tasks whose names contain any of the given keywords

    1. Prerequisites: Task list is not empty.

    2. Test case: find task User Guide
      Suppose that there is a task named User Guide.
      Expected: Message indicating number of tasks found is displayed. Task list updates to only show the tasks found.

    3. Test case: find task Review PR
      Suppose that there is no task with a name containing Review or PR.
      Expected: Message indicating that no tasks were found is displayed.

    4. Test case: find task
      Expected: An error message of Invalid command format will be displayed in the output box.

Listing all tasks

  1. Listing all tasks in the current team

    1. Test case: list tasks
      Expected: All tasks in the current team are displayed.

Mark tasks as done

  1. Marking a specified task as done

    1. Prerequisites: Task list is not empty.

    2. Test case: mark 1
      Expected: If the first task is already marked as done, an error message is shown in the output box. Otherwise, the first task in the team is marked as done.

    3. Test case: mark 0
      Expected: No task is marked as done. Error details shown in the output box.

    4. Other incorrect delete commands to try: mark, mark X, ... (where X is a positive integer larger than the displayed tasks list size)
      Expected: Similar to previous.

Unmark tasks as done

  1. Undoing the mark command to mark specified task as incomplete

    1. Prerequisites: Task list is not empty.

    2. Test case: unmark 1
      Expected: If the first task has not been marked as done, an error message is shown in the output box. Otherwise, the first task in the team is marked as incomplete.

    3. Test case: unmark 0
      Expected: No task is marked as incomplete. Error details shown in the output box.

    4. Other incorrect delete commands to try: unmark, unmark X, ... (where X is a positive integer larger than the displayed tasks list size)
      Expected: Similar to previous.

Setting Deadline for task

  1. Setting a deadline for an existing task

    1. Prerequisites: Task list is not empty.

    2. Test case: set deadline 1 2023-12-25 23:59
      Expected: The deadline for the first task on the task list is set as 25 Dec 2023 23:59.

    3. Test case: set deadline 0 2023-12-25 23:59
      Expected: No deadline is set for any task. Error details shown in the output box.

    4. Other incorrect set deadline commands to try: set deadline, set deadline X 2023-12-25 23:59, ... (where X is a positive integer larger than the displayed tasks list size)
      Expected: Similar to previous.

Assigning a task to team member

  1. Assign an existing task to a team member in the current team.

    1. Prerequisites: Task list is not empty. Multiple tasks in task list. Member list is not empty. Multiple tasks in member list.

    2. Test case: assign task 2 -a 1 2
      Expected: The second task on the task list is assigned to the first and second member in the team. If either of the members have previously been assigned to the task, a warning will show up in the output box.

    3. Test case: assign task 1 -a
      Expected: No additional assignee is set for any task. No error message will be shown.

    4. Test case: assign task 0 -a 1 2
      Expected: No assignee is set for any task. Error details shown in the output box.

    5. Other incorrect set deadline commands to try: assign task, assign task X -a Y, ... (where X is a positive integer larger than the displayed tasks list size, and/or Y is a positive integer larger than the displayed members list size)
      Expected: Similar to previous.

Assigning a task to random team member

  1. Assign an existing task to a random team member in the current team.

    1. Prerequisites: Task list is not empty. Multiple tasks in task list. Member list is not empty. Task is not already assigned to all members of the team.

    2. Test case: assign random 1
      Expected: The first task on the task list is assigned to a random team member.

    3. Test case: assign random 0
      Expected: No assignee is set for any task. Error details shown in the output box.

    4. Other incorrect set deadline commands to try: assign random, assign random X, ... (where X is a positive integer larger than the displayed tasks list size)
      Expected: Similar to previous.

Filtering tasks by team member

  1. Find all tasks that have been assigned to a particular member in the currently selected team.

    1. Prerequisites: Member list is not empty.

    2. Test case: tasksof 1
      Expected: All tasks assigned to the first member in your current team’s member list is displayed.

    3. Test case: tasksof 0
      Expected: Error details shown in the output box.

    4. Other incorrect set deadline commands to try: tasksof, tasksof X, ... (where X is a positive integer larger than the displayed members list size)
      Expected: Similar to previous.

Sorting members

  1. Sorting tasks in the currently selected team

    1. Test case: sort tasks asc
      Expected: Tasks are sorted in ascending alphabetical order in task list, based on their names.

    2. Test case: sort tasks dsc
      Expected: Tasks are sorted in descending alphabetical order in task list, based on their names.

    3. Test case: sort tasks res
      Expected: Order of tasks in task list is reset.

    4. Test case: sort tasks
      Expected: An error message of Invalid command format will be displayed in the output box.

View summary of task assignments in team

  1. Viewing the number of tasks assigned to each member in the team.

    1. Test case: summary
      Expected: The number of tasks assigned to each member in the team is displayed in the output box.

  1. Add a new link to the currently selected team

    1. Test case: add link -n google -l https://google.com
      Expected: If there is already a link called google in TruthTable, then an error message will appear in the output box. Otherwise, a new link will be added to the link list, with name google, and URL https://google.com.

    2. Test case: add link -n google"
      Expected: No link is created. Error details shown in the message displayed in the output box.

    3. Test case: add link
      Expected: An error message of Invalid command format will be displayed in the output box.

  1. Editing an existing link in the team

    1. Prerequisites: Task list is not empty.

    2. Test case: edit link 1 -n facebook -l https://facebook.com Expected: The first link in the current team’s link list is edited, setting the name as facebook, with the URL of https://facebook.com.

    3. Test case: edit link 1 -n google Expected: The first link in the current team’s link list is edited, setting the name as google.

    4. Test case: edit link 0 -n google Expected: No link is edited. Error details shown in the output box.

    5. Other incorrect delete commands to try: edit link, edit link X -n Meeting, ... (where X is a positive integer larger than the displayed links list size)
      Expected: Similar to previous.

  1. Deleting an existing link from the team

    1. Prerequisites: Link list is not empty.

    2. Test case: delete link 1
      Expected: The first link will be deleted from the link list

    3. Test case: delete link 0
      Expected: No link is deleted. Error details shown in the output box.

    4. Other incorrect delete commands to try: delete link, delete link X, ... (where X is a positive integer larger than the link list size)
      Expected: Similar to previous.

Effort

TruthTable was a complex project requiring extensive effort by all our team members.

Going beyond our limits

Here are some features of our project that makes our project distinct and unique:

Using picocli as our parsing library

As our app is catered for Software Engineering team leads, we wanted our app to feel similar to other Command-Line Interfaces (CLI) they may be acquainted with. Software Engineering team leads are generally proficient with using the Terminal to get things done, such as using git via its CLI, and many are highly familiar with the shell on Linux OS. Hence, we decided that the original AddressBook Level-3 (AB3) parser was not suitable as its syntax was relatively unintuitive, and steepens the learning curve for our target users.

We opted to scrape the parsers and used picocli as our parsing library, which enabled things like subcommands (using commands with spaces in them like add person instead of add_person) and flags to specify options (e.g. -n vs n/ in AB3), which and makes it more intuitive for users.

Multiple Classes

As our application’s primary function is to manage software engineering projects, including URLs, tasks, and team members within each team, we had to introduce new classes like Team, Task and Link. This added a high degree of complexity to our app as entities can be tied to each other in multiple ways, such as enabling tasks to have multiple assignees. This allows our app to provide extra functionality that makes our app more useful for Software Engineering team leads.

This resulted in the number of commands increasing from 9 (in AB3) to 42 (in TruthTable), which meant that more classes had to be written to accommodate the wide variety of commands (including intermediary data types such as Index and new objects in our model such as Team and Task), and more testing had to be done to ensure our app works as intended.

Improved UI

The original AB3 program only displayed the list of persons which is not very useful for a task management application. To make our app effective, we created additional panels for teams, members, tasks and links which makes it easier for the user to track the status of their team as they execute their commands.

In terms of colour scheme, we thought that the dark theme of AB3 was uninspiring and made use of own light theme to give this app a nice, warm and welcoming feel. For users that prefer a dark scheme however, we have provided the ability to switch themes as well.

Extensive Testing

The use of picocli meant that all parser classes had to be removed, and the way the commands are generated is different. Hence, all commands and parser tests in AB3 had to be removed and reimplemented.

Furthermore, the increased number of classes, along with all the commands, means that code coverage is likely to decrease and more testing had to be done.

Hence, we took it as an opportunity to do extensive testing for our application through writing effective unit tests for our commands, parsers and model objects. We redesigned how testing is done for commands and manage to cover all commands successfully. We maintained a ~73% code coverage from the original ~72% in AB3, and increased the number of test cases from 248 (in AB3) to 527 (in TruthTable).

Conclusion

Overall, this project has been extremely fulfilling, and we believe our team has managed to create a highly functional app. Over the few months of development, we pushed our limits and picked up skills that are extremely valuable in writing quality code and designing robust software.

This section only scratches the surface of the level of effort that we put into this project, and there were many other things like the countless discussions that went into design decisions big and small, and the invisible effort of documentation in this project. The additional challenges that we overcome as a team are not included here for the sake of brevity.

Hopefully, we hope that this Developer Guide will help you to understand the design and implementation of TruthTable. We welcome all Software Engineering student team leads to try, maintain or even extend our application.
